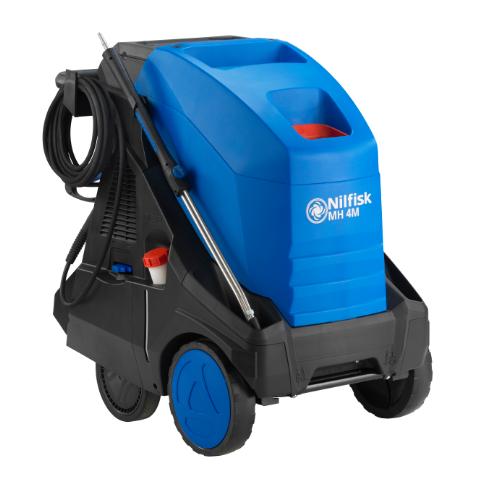

The MH 4M series takes mid-range hot water high pressure washers to a new level, meeting the latest productivity demands in the market.
The MH 4M is equipped with our industrial NA5 pump with 3 ceramic pistons and a high efficiency 4 pole motor. And the flow activated control system improves user comfort and handling as well as overall machine reliability.
The MH 4M is suited for all hot water slightly heavier cleaning applications up to 4-6 hours use per day and due to the improved fuel saving EcoPower boiler system it offers very high efficiency and quick cleaning.
Service and maintenance can be carried out quickly, as all vital parts are easy to inspect and reach. Also, the diagnostics function of the 4M will give maintenance warnings to minimise any downtime.
The MH 4M concept ensures the most optimal transport concept across a wide variety of surface types with the 4 large wheels and great balance. Optimal accessory storage facilities with double lance holders, turnable hook for easy removal or winding of electrical cable, innovative spray gun holder and easy storage of detergent tanks. Together with the quick service access to all vital parts, this series will provide remarkable cleaning results, saved time and reduced costs.
- High efficiency 4 pole motors
- EcoPower boiler with EcoMode function
- Brass pump head
- 3 ceramic pistons
- Pressure activated unloader system
- Innovative design with 4 big wheels
- Easy to transport, can even be pushed/pulled across uneven surfaces
- Flow activated unloader system
- Oil tank and oil sight
- Low pump oil warning system
- Low fuel warning system
- Onboard diagnostics function
The MH 4M series takes mid-range hot water high pressure washers to a new level, meeting the latest productivity demands in the market.
The MH 4M is equipped with our industrial NA5 pump with 3 ceramic pistons and a high efficiency 4 pole motor. And the flow activated control system improves user comfort and handling as well as overall machine reliability.
The MH 4M is suited for all hot water slightly heavier cleaning applications up to 4-6 hours use per day and due to the improved fuel saving EcoPower boiler system it offers very high efficiency and quick cleaning.
Service and maintenance can be carried out quickly, as all vital parts are easy to inspect and reach. Also, the diagnostics function of the 4M will give maintenance warnings to minimise any downtime.
The MH 4M concept ensures the most optimal transport concept across a wide variety of surface types with the 4 large wheels and great balance. Optimal accessory storage facilities with double lance holders, turnable hook for easy removal or winding of electrical cable, innovative spray gun holder and easy storage of detergent tanks. Together with the quick service access to all vital parts, this series will provide remarkable cleaning results, saved time and reduced costs.
- High efficiency 4 pole motors
- EcoPower boiler with EcoMode function
- Brass pump head
- 3 ceramic pistons
- Pressure activated unloader system
- Innovative design with 4 big wheels
- Easy to transport, can even be pushed/pulled across uneven surfaces
- Flow activated unloader system
- Oil tank and oil sight
- Low pump oil warning system
- Low fuel warning system
- Onboard diagnostics function
| Selected product | |||
|---|---|---|---|
| Product details | Item no. 107146910 | Item no. 107146911 | Item no. 107146912 |
| Weight (KG) | 138 | 141 | 149 |
| Length x width x height (MM) | 1010x700x1016 | 1010x700x1016 | 1010x700x1016 |
| Fuel tank ( L ) | 15 | 15 | 15 |
| Pump pressure (bar/MPa) | 100/10 | 100/10 | 210/21 |
| Cleaning impact (kg/force) | 2.5 | 2.5 | 5.5 |
| Water flow Qmax/Qiec (l/h) | 680/630 | 680/630 | 1000/940 |
| Max. inlet temperature (°C) | 40 | 40 | 40 |
| Water temperature (water/steam) (°C) | 90/150 | 90/150 | 90/150 |
| Power consumption (kW) | 2.9 | 2.9 | 8.0 |
| Voltage/phase/frequency/current (V/~/Hz/A) | 230/1/50/13 | 230/1/50/13 | 400/3/50/13,5 |
| Fuel consumption at ΔT=45°C (kg/h) | 2.8 | 2.8 | 4.1 |
| El cable (m) | 5 | 5 | 5 |
| Detergent tank (l) | A: 10 + B: | A: 10 + B: | A: 10 + B: |
| Nozzle size | .0475 | .0475 | .0475 |
| Ceramic pistons | 3 | 3 | 3 |
| Pump (RPM) | 1450 | 1450 | 1450 |
| Recommended avg. hours of use per day | 5 | 5 | 5 |
| Cable Hook, turnable | | | |
| Hose reel | N/A | | |
| SilentPower - 1450 rpm motor | | | |
| QuickService - innovative concept | | | |
| Ergo accessory system | | | |
| Wdk dual detergent injector | | | |
| Pump oil warning system | | | |
| Service indicator | | | |
| Water break tank | | | |
| Water flow regulation | | | |
| Single-phase | | | N/A |
| Brass cylinder head | | | |
| Three phase | N/A | N/A | |
| High presure detergent system | | | |
| 2 x detergent injector | | | |
| Detergent tank | | | |
| Parking brake | | | |
| Transportable by forklift truck | | | |
| Fuel tank | | | |
| Flame sensor | | | |
| Spray Gun Holder | | | |
| Motor on-off lamp | | | |
| Detergent tank 10 ltr. | | | |
| 2 lance holder | | | |
| Large wheel - 4 pcs. | | | |
| Storage box | | | |
| Anti Stone | | | |
| Fuel tank 15 ltr. | | | |
| Fuel sight from outside | | | |
| ECO mode feature | | | |
| Water inlet filter 50µ | | | |
| Full ceramic pistons | | | |
| Delayed automatic start stop | | | |
